SWIR33 Series(VCI-A1GT+SWIR33 Series) SenSWIR InGaAs Camera
CAMERAS & VIEWSECCTV
● SWIR33 Series SenSWIR InGaAs Camera:
VCI-A1GT033GM-SWIR-B1;
VCI-A1GT033GM-SWIR-B3;
VCI-A1GT033GM-SWIR-B7
● VCI-A1GT+SWIR33 Series｜GigE｜Cooled Industrial Area Scan Camera Using SenSWIR InGaAs
1、SONY SenSWIR InGaAs sensor
2、Built-in TEC orExternal TEC cooling chip
3、Precise temperature control, the temperature difference can reach 10-25 degrees Celsius
4、Spectral response range: 400nm-1800nm
5、5um pixel size
6、Global shutter
7、Supportinterface: USB3 / GigE / MIPI(developing) / CameraLink(developing)
8、12-bit ADC
9、4Gb memory
10、Support external IO trigger control
11、High framerate exceeding official parameters
| Model Number | Image Sensor | Pixel size | Data interface | FPS/Resolution | Data Sheet |
|---|---|---|---|---|---|
| VCI-A1GT033GM-SWIR-B1 |

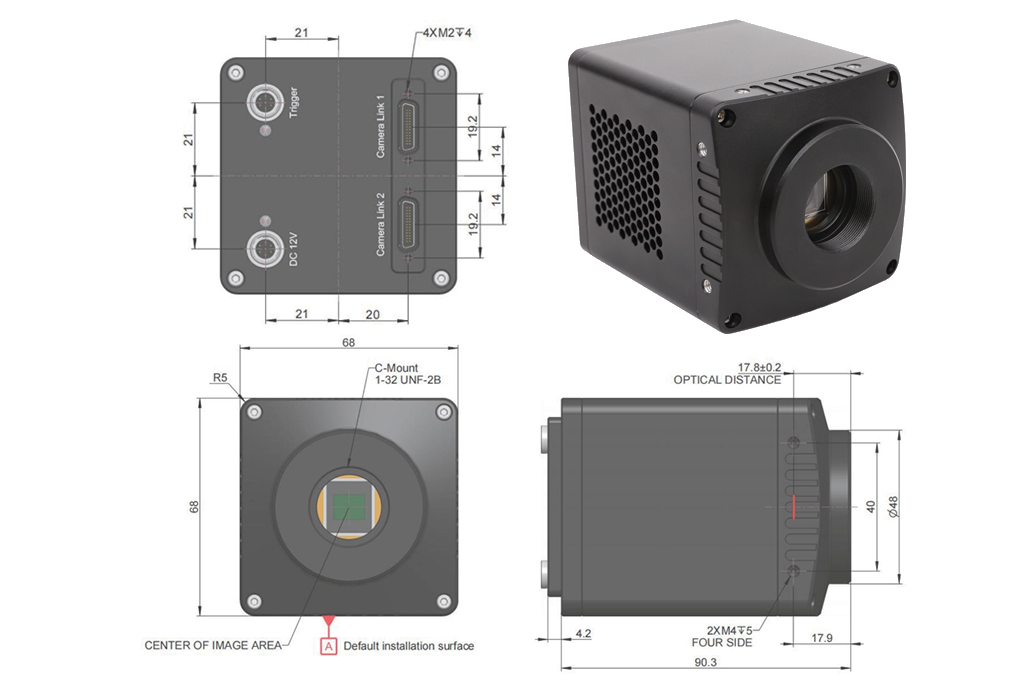

3/4″(68×68×90.3mm) 0.33M / 640x512 (9.60x7.68) Buit-in TEC |
15 µm | GigE | 125@640x512 | |
| VCI-A1GT033GM-SWIR-B3 |
3/4″(68×68×90.3mm) 0.33M / 640x512 (9.60x7.68) Buit-in TEC |
15 µm | GigE | 350@640x512 | |
| VCI-A1GT033GM-SWIR-B7 |
3/4″(68×68×90.3mm) 0.33M / 640x512 (9.60x7.68) Buit-in TEC |
15 µm | GigE |
360@640x512 700@320x256 |
