SWIR33 Series(VCI-ACLT+SWIR33 Series)
SenSWIR InGaAs Camera
CAMERAS & VIEWSECCTV
● SWIR33 Series SenSWIR InGaAs Camera:
VCI-ACLT033GM-SWIR-A5;
VCI-ACLT033GM-SWIR-A7;
VCI-ACLT033GM-SWIR-B5;
VCI-ACLT033GM-SWIR-B7
● VCI-ACLT+SWIR33 Series｜GigE｜Cooled Industrial Area Scan Camera Using SenSWIR InGaAs
1、SONY SenSWIR InGaAs sensor
2、Built-in TEC orExternal TEC cooling chip
3、Precise temperature control, the temperature difference can reach 10-25 degrees Celsius
4、Spectral response range: 400nm-1800nm
5、5um pixel size
6、Global shutter
7、Supportinterface: USB3 / GigE / MIPI(developing) / CameraLink(developing)
8、12-bit ADC
9、4Gb memory
10、Support external IO trigger control
11、High framerate exceeding official parameters
| Model Number | Image Sensor | Pixel size | Data interface | FPS/Resolution | Data Sheet |
|---|---|---|---|---|---|
| VCI-ACLT033GM-SWIR-A5 |

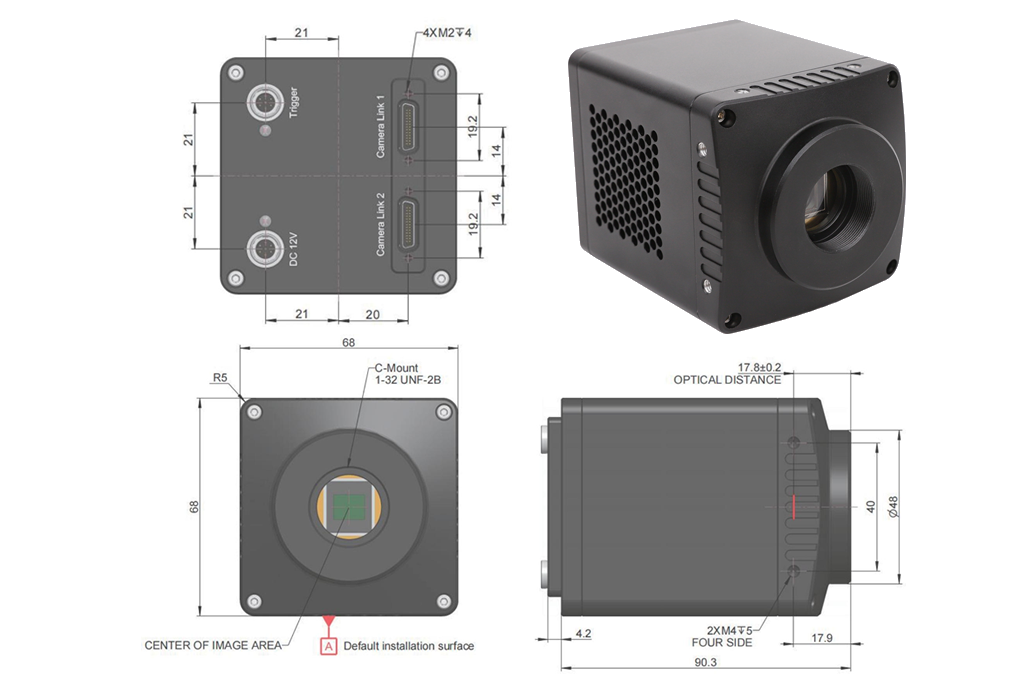

3/4″(68×68×90.3mm) 0.33M / 640x512 (9.60x7.68) Buit-in TEC |
15 µm | CameraLink | 517@640x512 | |
| VCI-ACLT033GM-SWIR-A7 |
3/4″(68×68×90.3mm) 0.33M / 640x512 (9.60x7.68) Buit-in TEC |
15 µm | CameraLink | 724@640x512 | |
| VCI-ACLT033GM-SWIR-B5 |
3/4″(68×68×90.3mm) 0.33M / 640x512 (9.60x7.68) Buit-in TEC |
15 µm | CameraLink | 517@640x512 | |
| VCI-ACLT033GM-SWIR-B7 |
3/4″(68×68×90.3mm) 0.33M / 640x512 (9.60x7.68) Buit-in TEC |
15 µm | CameraLink | 724@640x512 |
